| AEON Model | ASA09OJ1 | ||
| Power supply | 1Ph / 220-240V/50Hz | ||
| Cooling | Capacity | 9000 | |
| Input | 880 | ||
| Rated current | 4.12 | ||
| Max. input consumption | 1200 | ||
| Max. current | 5.74 | ||
| Compressor | Type | Rotary | |
| Brand | GMCC | ||

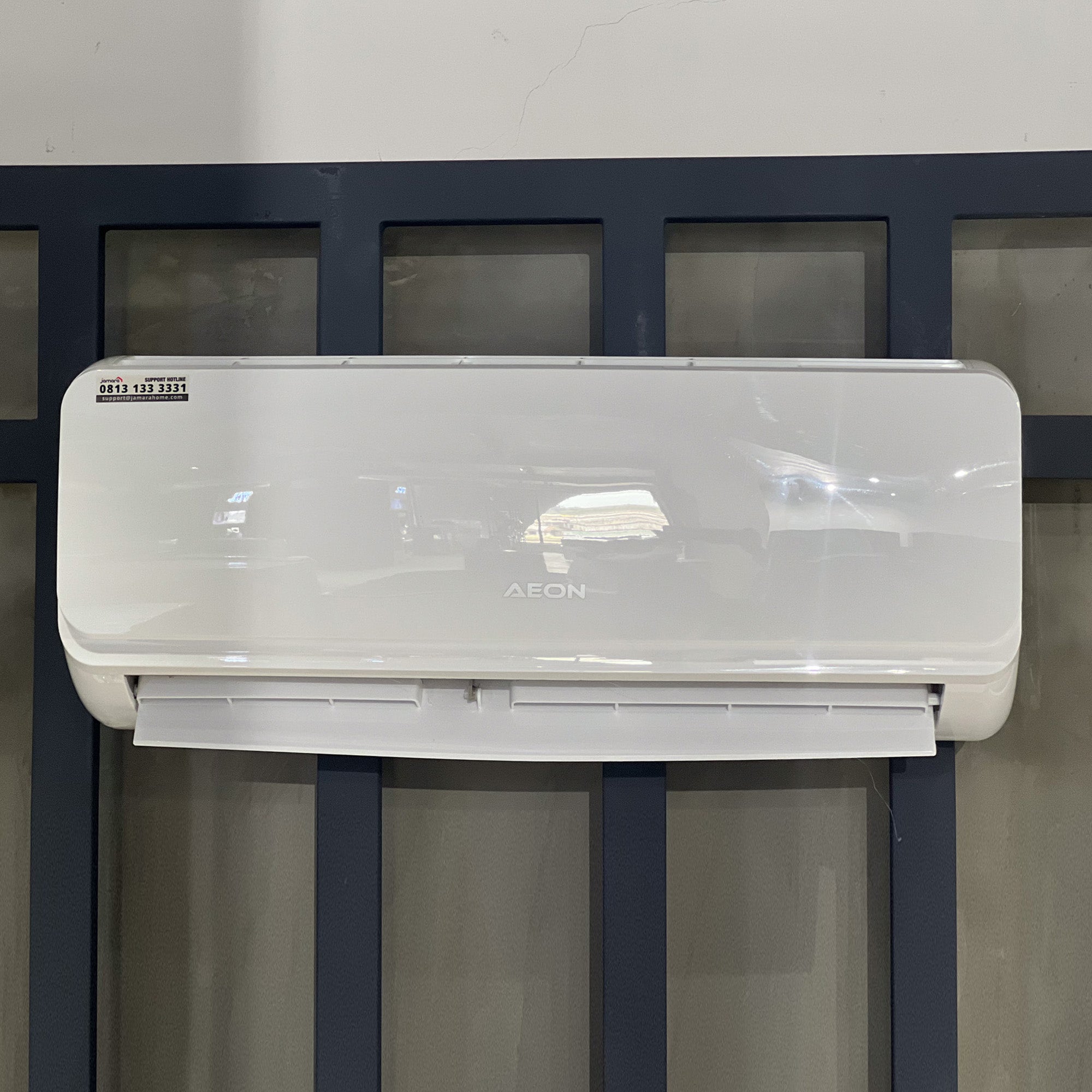

| Indoor unit | Indoor fan motor | Model | YYK13-4 |
| Brand | DONGFANG | ||
| Output Power | 13W | ||
| Capacitor | 1.5 | ||
| Speed (Hi/Mi/Lo) | 1200/1150/1000/900 | ||
| Indoor coil | Tube pitch(a)x row pitch(b) | 21×12.7 | |
| Fin spacing | 1.5 | ||
| Fin material | Hydrophilic | ||
| Tube outside dia.and material | φ7，inner Grooved | ||
| Coil length x height x width | 522*252*12.7 | ||
| Indoor air flow (Hi/Mi/Lo) | 500/400/320 | ||
| Rated input Power(cooling/heating) | 30 | ||
| Rated current (cooling/heating) | 0.2 | ||
| Moisture Removal | 0.8 | ||
| Noise level(Hi/Mi/Lo) | 37/34/32 | ||
| Unit dimension (W*H*D) | 720X292X190 | ||
| Packing (W*H*D) | 785X335X240 | ||
| Net weight | 6.5 | ||
| Gross weight | 7.5 | ||

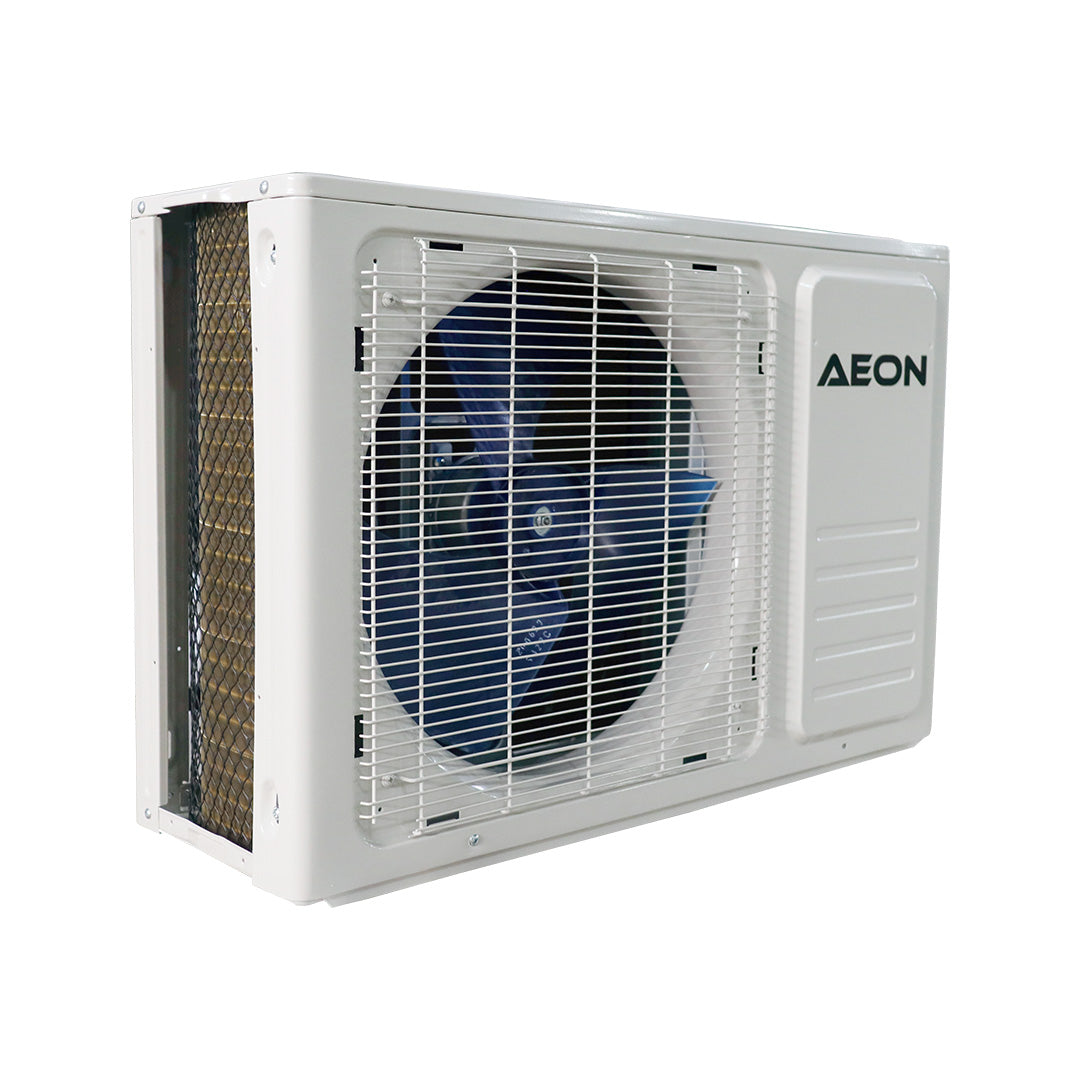

| Outdoor unit | Outdoor fan motor | Model | YDK25-6 |
| Brand | DONGFANG | ||
| Output Power | 25 | ||
| Capacitor | 2.5 | ||
| Speed | 860±30 | ||
| Outdoor coil | Tube pitch(a)x row pitch(b) | 19×11.57 | |
| Fin spacing | 1.3 | ||
| Fin material | Non-hydrophilic | ||
| Tube outside dia.and material | φ5，Inner Grooved | ||
| Coil length x height x width | 544×462×11.57 | ||
| Noise level | 47 | ||
| Unit dimension (W*H*D) | 600×248×502 | ||
| Packing (W*H*D) | 745×335×550 | ||
| Net weight | 20.5 | ||
| Gross weight | 23 | ||
| Refrigerant type | R410A | ||
| Refrigerant charge | 405 | ||
| Design pressure | 4.5 | ||
| Refrigerant pipe | Liquid side | Φ6 | |
| Gas side | Φ9 | ||
| Max. refrigerant pipe length | 10 | ||
| Max. difference in level | 5 | ||
| Operation temperature range | 16℃-43℃ | ||
| Ambient temperature range | 16℃-48℃ | ||
| Application area | 10~20 | ||
